Project At-a-Glance
- Narrowly constrained worksite next to the active freeway
- Diaphragm wall construction method to create 14.7 acre-ft of underground stormwater storage.
- CMGC project delivery
- Completed project will reduce wet weather storm event flooding
See More

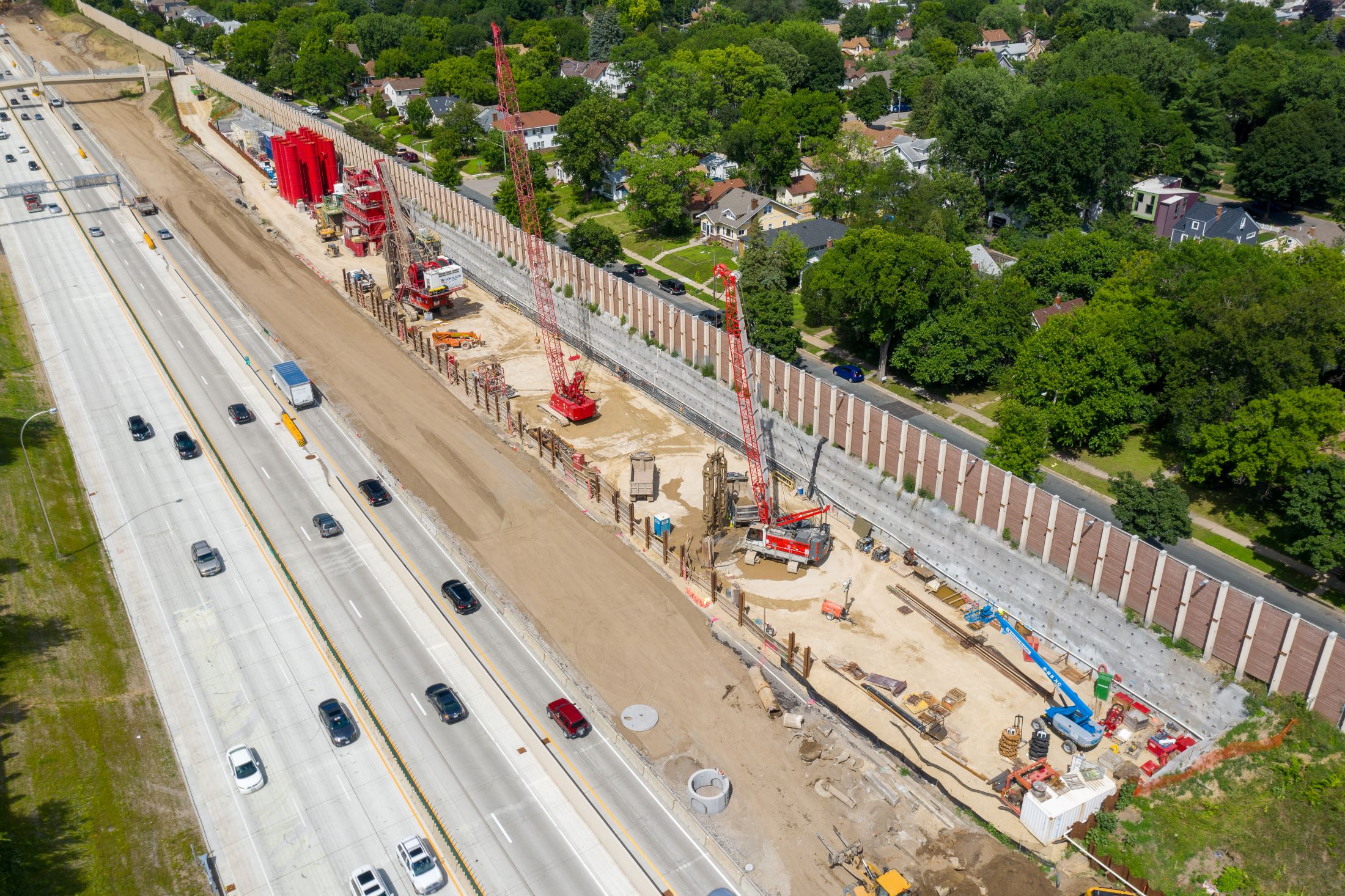

- View a flyover of construction activities at the project site! Video courtesy of Minnesota Department of Transportation
Project Narrative
Wet weather storm event flooding of I-35W in Minneapolis has at times created surcharge conditions within the existing stormwater tunnels that result in manhole lids being blown off by water force. Minnesota DOT retained the team of Brierley Associates, Barr Engineering, and TKDA to develop and design a solution. Project construction will be through MNDOT’s CMGC project delivery process by Kraemer/Nicholson Construction Company JV.
The I-35W stormwater tunnel system was constructed in the 1960s to carry stormwater runoff from the highway and the surrounding neighborhoods. Development in the 3,100-acre surface drainage area has continued, which has increased the volume of stormwater directed into the tunnels. Flooding of the highway occurs when the system is filled over its design capacity.

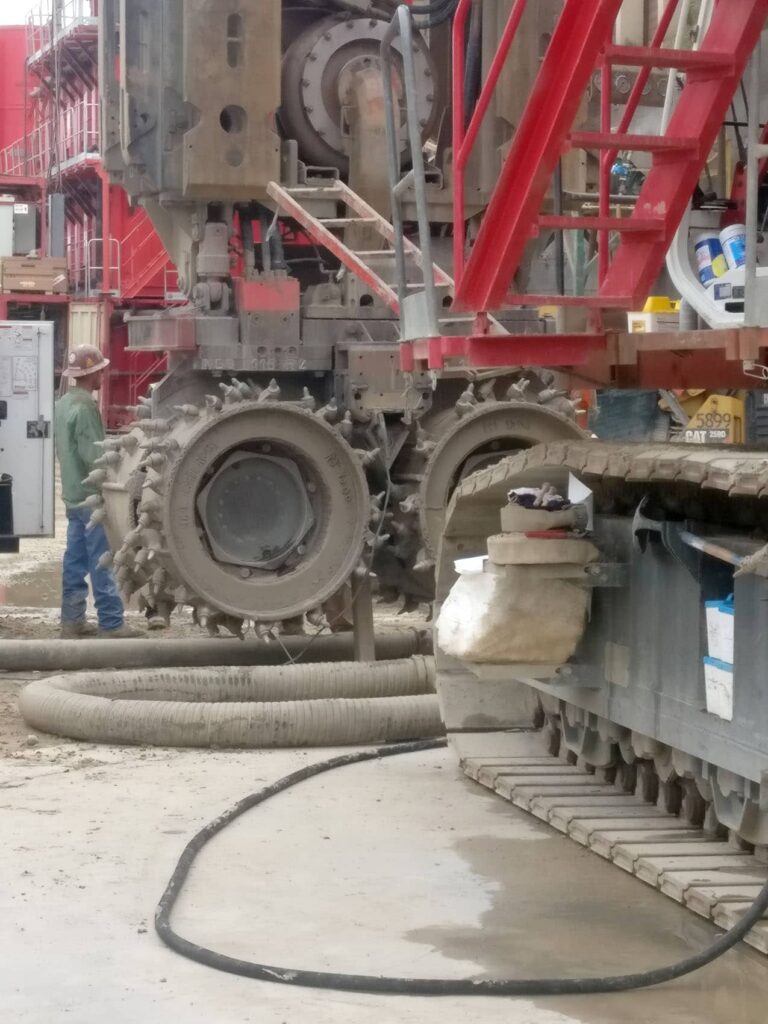

Brierley Associates is part of a team providing design services for a stormwater storage facility to mitigate flooding. Given the tight space constraints, an underground storage structure with the capacity of 14.7-acre-ft (4.79 million gallons) consisting of a series of 6 interlocking diaphragm walls approximately 46-ft in diameter and 80-ft deep in the ROW of I-35W was designed by our team.
The location of this stormwater storage facility presents unique geotechnical/construction challenges such as:
- a high groundwater table environment
- variable glacial geology
- unbalanced loading on the final structure
- the relationship of the new structure on the maintenance of the active service stormwater system
- a tight construction area within a dense residential and business corridor

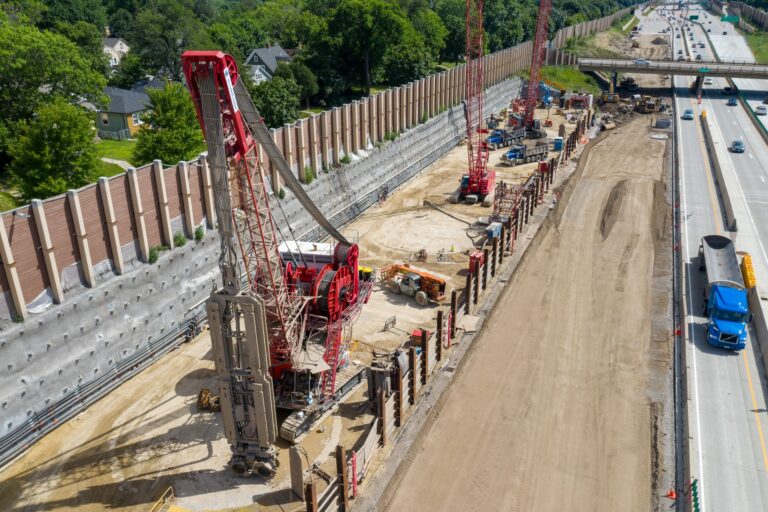

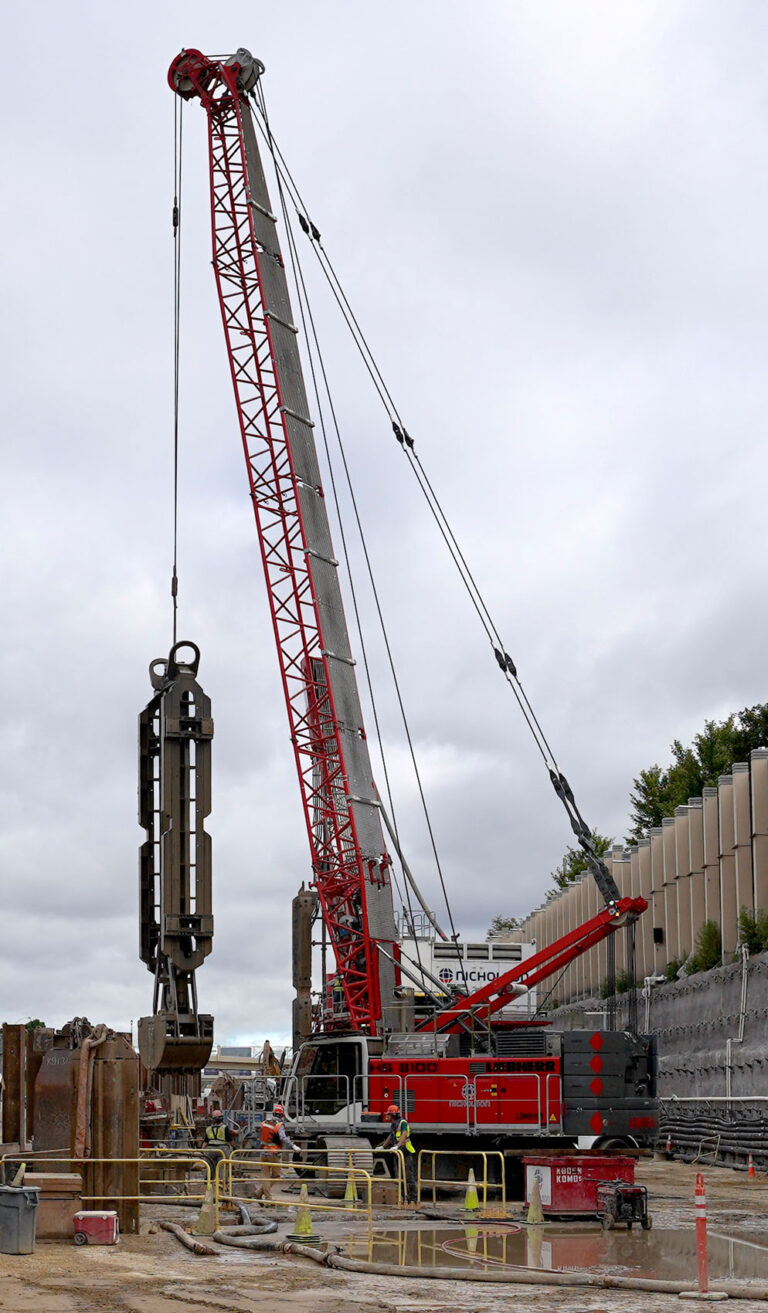

The team is coordinating with a simultaneous major MnDOT project in the area which will increase the number of lanes of I-35W near downtown Minneapolis. Solving these challenges requires innovative staging and construction sequencing as well as geotechnical modeling. The photo on the top of this page is courtesy of Nicholson Construction. The video below is a simulation of the project developed by Barr Engineering.
